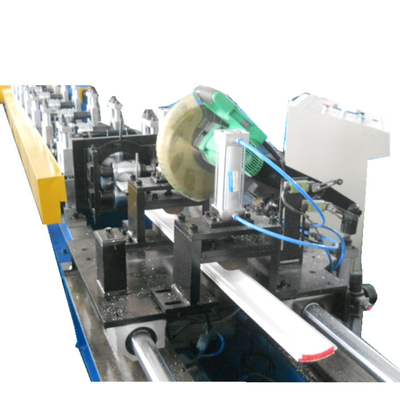

51.5 PU ROLLING SHUTTER DOOR ROLL FORMING MACHINE



Zhongtuo cold rolling forming machinery Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming Machine and within a short period of time it turned out to be one of the most distinguished companies in Security rolling shutters roll forming machine and outer PU Foam Roller Shutter Door Roll Forming Machine industrial branch. we can produce a wide range of industrial doors includes sectional overhead doors and roller shutters and fire roller shutters and security doors also PU Foam Injection Shutter and etc.Steel roller shutters are very versatile and come with various options.PU foam shutter door section which is ideal for showrooms. So we take the following drawing profile for example to show you the PU roller shutter door roll forming machine designed.











Main motor power

 7.5kw

Hydraulic motor power

 2.2kw

Voltage

 380v 50hz 3 phrase

Control system

 PLC

Feeding thickness

 0.3mm-0.5mm

Speed

 10-12m/min

Roller station

 36+1 station

Shaft diameter

 50 mm

Shaft material

 45# solid steel

Roller material

 Gcr 15 steel after quenching processing HRC58-62℃, chrome plated surface

Drivetrain

 110 Gearbox welded structural steel

Cutting device

 Servo track cutting



PU Foaming Unit: Mixer type

PU Raw meterial tank







3T manual decoiler specification:



Item Specification
Decoiling Type Actively Uncoiling Type
Loading Capacity 3 Tons
Loading Width Max. 700mm
Coil Inner Diameter 450-550mm
Coil Outer Diameter Max. 1500mm













Q: Can you customize the machine to your company's specifications?

A: Yes, we can manufacture the machine according to your specifications.



Q: How is the quality?

A: All raw materials are quality controlled. Staffs take care of every detail when handling and packaging. Our quality control department is resonsible for the quality of each product.



Q: Do we have after sales service?

A: Yes, we have after sale service via email, whatsapp, wechat skype and other communication tools.



Q: Does our machine comes with warrenty?

A: Yes, it comes with 1 year warranty.
