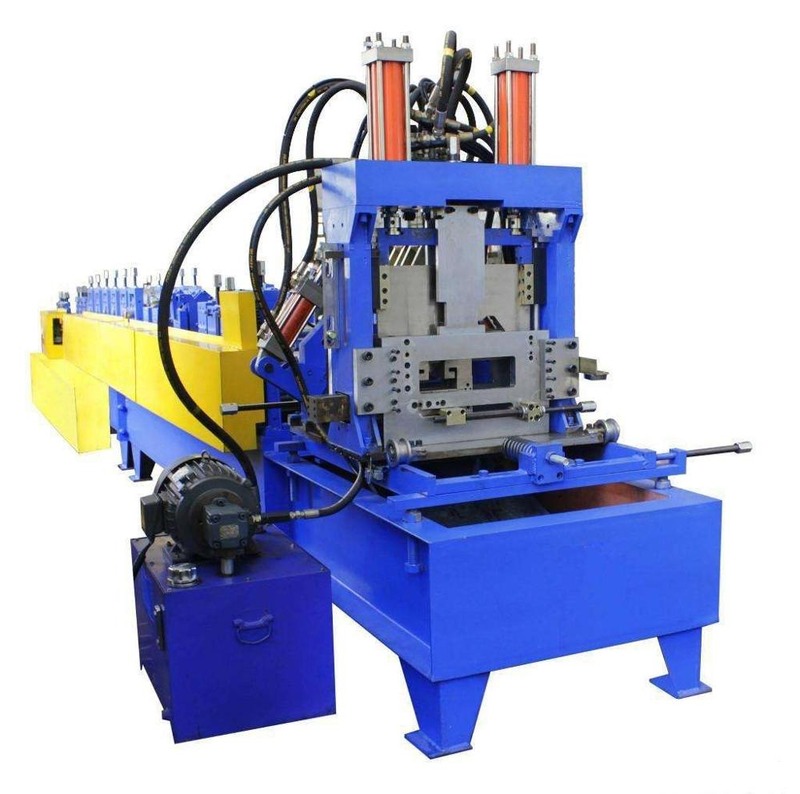

Building Material Shops CZ Interchangeable Purline Machine Automatic Purline Machine

Components of Machine and Main Description

Components of Machine

Main Description

1

Automatic hydraulic uncoiler(according the machine and your requirement)

1.Loading Capacity:Max:5 Tons

2.Main motor:3 KW

3.Coil Width:Max:1250mm

2

Entry Bench

Guiding the raw material into the roll forming machine smoothly

3

Feeding Section with guide

Easily for the raw material entry

4

Main forming machine

Forming the panel according your requirement

5

PLC control system

Automatically control the quantity of sheet, cutting length, step length

6

Cutting blade

Cutting the panel automatically

7

Product Rack

Can adjustable according the length of the panel (3 units)

8

Pressing device

Pressing the panel automatically

9

Mesh cover above roll former(optional)

Avoid hand go inside the forming machine

Technical Parameters (some depend on the final design)

1

Style

Z60-150

2

Machine Dimension (mm)

12000*1500*1500

3

Total Wight (Kg)

6000

4

Forming Steps

12

5

Forming Speed (m/min)

Approx.10

6

Hydraulic Station Power(KW)

7.5

7

Diameter of Shaft (mm)

75

8

Electric Condition

380V/3Phase/ 50HZ

9

Power for Hydraulic Uncoiler(KW)

2.5 and 3

10

Recoiler Max Capacity (KGS)

10000

11

Control System

PLC

12

Raw Material Thickness (mm)

1.5-3.0

13

Effective Width(mm)

60-150

14

Material Width(mm)

132-276

15

Serial Number

A2011001

Feature:

1. Cutter Material: Cr12MoV1 mould steel with heat treatment

2. Shaft Material: Cr12 mould steel with heat treatment

3. Roller Material:40Gr mould steel with heat treatment, hard Chrome Coated

4. Delivery time:30% deposit and balance before delivery

5. This product line to produce C-purlin with pre-punching and pre-cutting

6. Widely used in various industrial, factory, villa building, civilian building, warehouse and have features such as nice appearance and durable

7. We can manufacture various kinds of machines to satisfy our customer, you can also provided the drawings what you want or the samples, we will design the project for you accordingly
